Finding the Right Lennox Flame Sensor for Your Furnace

When Your Furnace Keeps Shutting Off, the 52W29 Lennox Flame Sensor Is Often to Blame

The 52W29 Lennox flame sensor is a small but critical safety part that tells your furnace whether a flame is actually burning. If it can't confirm a flame, your furnace shuts down — fast.

Quick answer for homeowners:

• Part number: 52W29 (also listed as LB-74940A)

• What it does: Detects flame presence during each heating cycle to prevent unburned gas buildup

• Key sign it's failing: Furnace lights briefly, then shuts off within 5 seconds

• Replacement cost: $20–$70 depending on the retailer

• Important: Always match the exact part number — generic substitutes can be the wrong size and won't fit properly

This tiny sensor weighs just 0.05 lbs, but without it working correctly, your furnace simply won't run. And in a Utah County winter, that's a serious problem.

Many homeowners don't realize the sensor is the issue until they've already been through a few frustrating heating cycles. The furnace seems to start — you hear the ignition click, see the flame kick on — and then everything cuts out again. That cycle is a classic sign the flame sensor isn't sending a clean signal to the control board.

The good news: this is one of the more straightforward furnace repairs out there. But getting the right part matters more than most people expect.

Understanding the 52W29 Lennox Flame Sensor Specifications

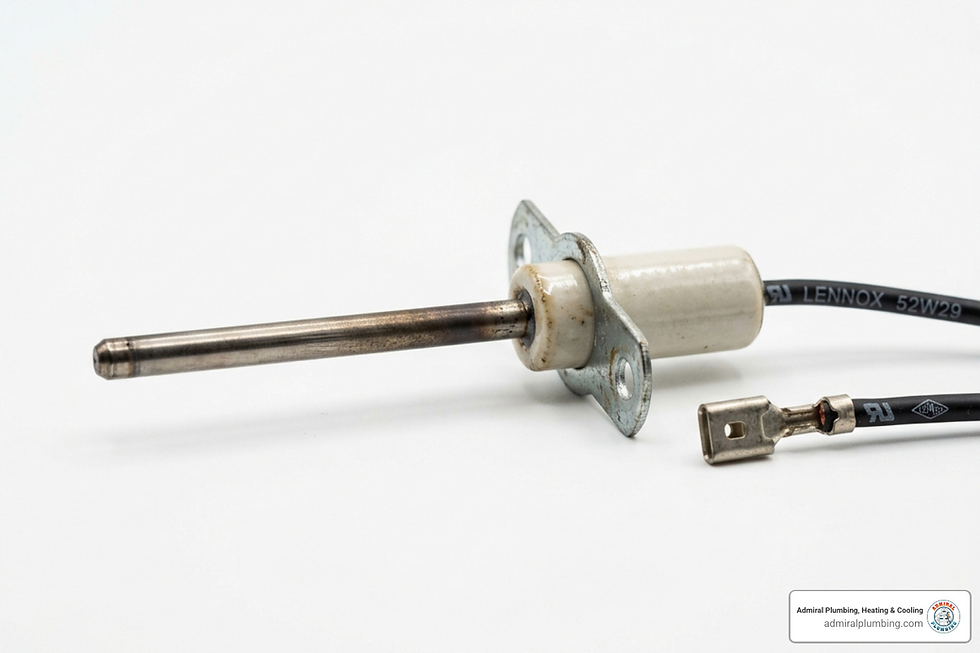

To the untrained eye, the 52W29 Lennox flame sensor looks like a simple metal rod with a ceramic base. However, this component is engineered to withstand extreme conditions within your furnace's combustion chamber. According to the 52W29 Lennox Flame Sensor Precision technical documentation, this part is often identified by the manufacturer part number 52W29 or the kit number LB-74940A.

The sensor works through a process called flame rectification. It doesn't just "feel" heat; it uses the ionized particles in the flame to conduct a small electrical current. If the furnace control board doesn't receive this microamp signal, it assumes no flame is present and shuts off the gas for safety.

Technical Dimensions and Materials

The 52W29 features a straight probe design. It is incredibly lightweight, coming in at just 0.05 lbs. The physical dimensions are precise: a width of 3.625 inches and a rod diameter of 0.114 inches. The package dimensions for the kit usually measure approximately 7.15 x 1.00 x 1.95 inches.

Extreme Temperature Ratings

Because this rod sits directly in the fire, it must be constructed of high-grade materials. The 52W29 Lennox flame sensor is built to handle the following maximum temperatures:

Component	Max Temperature Rating
Metal Sensor Rod	2190°F
Ceramic Insulator	1000°F
Wiring Insulation	250°F
Sauereisen Electrotemp Cement #8	2600°F

The use of Sauereisen Electrotemp Cement #8 ensures that the rod remains securely bonded to the ceramic base even under the constant thermal expansion and contraction of a Northern Utah winter. Some advanced versions of this sensor are even described as detecting UV radiation from flames to differentiate between a healthy burner and a dangerous "absence of flame" state.

Compatibility and the Risks of Generic Substitutes

One of the most common mistakes we see homeowners make is buying a "universal" sensor that claims to replace the 52W29. While many parts look similar, the 52W29 (Lennox) | Flame Sensor is specifically designed for high-efficiency Lennox equipment.

Compatible Models

The 52W29 is a primary replacement part for several Lennox furnace lines, most notably the Lennox G40UH series. It is also the direct replacement for older part numbers like 31L71 and 31L7101.

The Danger of Generic Parts (e.g., 98M87)

While it might be tempting to save a few dollars on a generic substitute, user reports indicate significant fitment issues. Specifically, when substituting parts like the 98M87 for a true 52W29, the ceramic base is often too large.

If the ceramic diameter is even a fraction of an inch too wide, it won't fit through the pre-drilled hole in your furnace's burner housing. Furthermore, the spade connector size—the metal tab where the wire attaches—can vary. If the connector is too large, your existing wiring harness won't clip onto it, leaving you with a cold house and a useless part. We always recommend sticking with the precision-engineered OEM (Original Equipment Manufacturer) part to ensure the safety and efficiency of your system.

Step-by-Step Installation Guide

If you are comfortable with basic tools, replacing the 52W29 Lennox flame sensor is a task that can often be completed in about 20 minutes. However, if you are unsure about working with gas appliances, it is always safer to schedule a professional furnace service.

1. Safety First

Before doing anything, turn off the power to the furnace at the circuit breaker or the nearby service switch. You should also turn off the gas supply line leading to the unit.

2. Locate the Sensor

Open the furnace cabinet. The flame sensor is typically located on the opposite side of the burner assembly from the igniter. It will have a single wire leading to it.

3. Remove the Old Sensor

Using a 1/4-inch nut driver, remove the screw holding the mounting bracket in place. Carefully pull the sensor out of the combustion chamber. Disconnect the wiring harness from the spade connector.

4. Install the New 52W29

Slide the new straight probe into the mounting hole. Ensure the probe is positioned directly in the path of the furthest burner flame. Re-install the mounting screw and reconnect the wire.

5. Testing

Turn the power and gas back on. Set your thermostat to "Heat" and observe the ignition cycle. The burners should ignite, and the furnace should stay running past the 5-10 second mark.

Troubleshooting and Maintenance for Furnace Safety

A furnace "lockout" is usually the result of the control board failing to see a flame signal. Before you rush out to buy a new part, it is worth checking if the sensor just needs a quick cleaning.

Over time, the combustion process creates a thin layer of carbon or soot on the metal rod. This oxidation acts as an insulator, preventing the electrical signal from reaching the rod. If your furnace is "short cycling" (turning on and off rapidly), this buildup is the likely culprit.

Cleaning vs. Replacement

You can often restore a dirty sensor by gently rubbing the metal rod with light-grit sandpaper or a Scotch-Brite pad. You aren't trying to grind the metal down; you just want to remove the dull gray oxidation until the rod is shiny again.

However, if you see visible cracks in the ceramic insulator, the part is compromised and must be replaced. A cracked ceramic base can cause the electrical signal to "leak" to the furnace chassis, resulting in a false "no flame" reading. According to data from Reliable Parts, maintaining a clean, functional sensor is one of the most cost-effective ways to prevent emergency midnight repair calls.

Frequently Asked Questions

What is the difference between the 52W29 Lennox flame sensor and generic versions?

The primary difference is fitment precision. Genuine Lennox parts ensure the ceramic base and spade connectors match the factory specifications of your G40UH or similar model. Generic versions often have oversized ceramic bases that won't fit the mounting hole. Additionally, the Lennox 52W29 Flame Sensor is built to specific voltage signal tolerances, ensuring your control board receives an accurate microamp reading every time.

How do I know if my 52W29 Lennox flame sensor is bad?

The most obvious sign is the "5-second shutdown." If your furnace lights but cuts out almost immediately, the sensor is likely failing. Other signs include visible cracks in the ceramic, heavy black soot that cannot be cleaned off, or a multimeter reading of less than 1.0 microamps when the flame is present.

Where can I purchase a genuine replacement?

The 52W29 Lennox flame sensor is widely available through authorized HVAC parts retailers. Prices typically range from $20.62 to $70.41. When ordering, look for the package dimensions of 7.15 x 1.00 x 1.95 inches and a shipping weight of approximately 0.05 lbs to ensure you are getting the correct kit. Many retailers offer same-day pickup, which is vital when your heat goes out in the middle of a Utah winter.

Conclusion

The 52W29 Lennox flame sensor might be a small part, but it carries a huge responsibility for your home's safety and comfort. By ensuring your sensor is clean and properly installed, you can avoid the frustration of a furnace that won't stay lit.

At Admiral Plumbing, Heating & Cooling, we’ve been serving Northern Utah—from Provo to the surrounding areas—for years. We maintain an A+ rating with the BBB because we believe in doing the job right the first time. Whether you need a quick sensor cleaning or a full system diagnostic, our team is available 24/7 for emergency services.

Don't spend another night in a cold house. Schedule your professional furnace service today and let us make sure your Lennox system is running safely and efficiently all season long.
